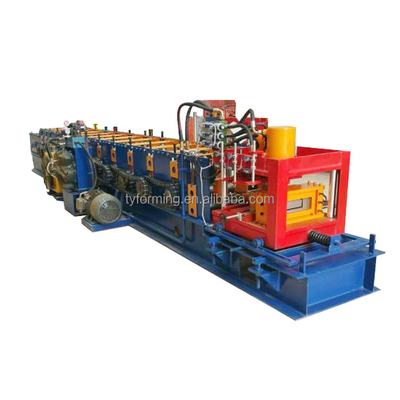

Hotels High Standard Steel Purlin C Channel Roll Forming Machine For Building Material

1.0 Sets
MOQ
Hotels High Standard Steel Purlin C Channel Roll Forming Machine For Building Material
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Type: Steel Frame & Purlin Machine
Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Home Use, Food Shop, Printing Shops, Other, Advertising Company
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: PLC, Bearing, Motor, Gear, Pump
Condition: New
Production Capacity: 15m/min
Voltage: 380V 220V 440V
Power: 7.5KW
Dimension(L*W*H): 8500*1250*1350MM
Weight: 5T
Warranty: 1 Year
Key Selling Points: Easy to Operate
Product name: C Purlin Roll Forming Machine
Shaft material: 45# High Grade Steel
Roller material: 45# Steel Chrome-faced
Cutting blade material: Cr 12 High Grade Steel
Raw material: Color Steel Sheet
Roller stations: 18 rows
Control system: PLC: Delta
Cutting system: Automatic Hydyaulic Cutting
After Warranty Service: Video technical support, Online support
Local Service Location: None
After-sales Service Provided: Online support, Video technical support
Πιστοποίηση: CE/ISO 9001
Βασικές πληροφορίες
Πιστοποίηση: CE/ISO 9001
Πληρωμής & Αποστολής Όροι
Packaging Details: Standing Seam Roofing Panel Roll Forming Machine 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3 .Roll forming machine PLC control sy
Supply Ability: 30 Set/Sets per Month
Περιγραφή προϊόντων
Product Description
Specification
item
value
Type
Steel Frame & Purlin Machine
Applicable Industries
Hotels, Building Material Shops, Machinery Repair Shops, Home Use, Food Shop, Printing Shops, Other, Advertising Company
After Warranty Service
Video technical support, Online support
Local Service Location
None
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2021
Warranty of core components
1 Year
Core Components
PLC, Bearing, Motor, Gear, Pump
Condition
New
Production Capacity
15m/min
Place of Origin
china hebei
Brand Name
TY
Voltage
380V 220V 440V
Power
7.5KW
Dimension(L*W*H)
8500*1250*1350MM
Weight
5T
Certification
CE/ISO 9001
Warranty
1 Year
Online support, Video technical support
Key Selling Points
Easy to Operate
Product name
C Purlin Roll Forming Machine
Shaft material
45# High Grade Steel
Roller material
45# Steel Chrome-faced
Cutting blade material
Cr 12 High Grade Steel
Raw material
Color Steel Sheet
Roller stations
18 rows
Control system
PLC: Delta
Cutting system
Automatic Hydyaulic Cutting
Packing & Delivery
Standing Seam Roofing Panel Roll Forming Machine 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3 .Roll forming machine PLC control system and moter pump are packed with water-proof plastic coverage.
Company Profile
FAQ
FAQ
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.

Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.

Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,
we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.
we have rich experience in transport.

Q:Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.

Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
